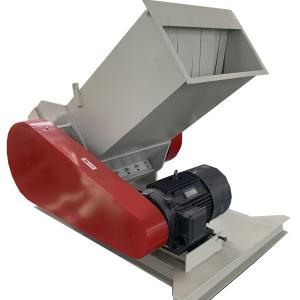

Recycling 9CrSi Blade 400kg/H 22KW Plastic Crusher Machine
Reason for Industry Plastic Crusher
With the increasing of plastic products nowadays in our daily life, more and more waste plastics are produced both in plastic facotry during production and our household appliance, due to economic and environment reason, we need to recycle these plastic wastes.
But how to choose the crusher, among many factors of the machine, blade type, screen diameter and production capacity are most important, in other words, we have to find out questions below:
1,What is the waste materials we want to recycle?
2,What is the size of final plastic scrap?
3,How many kilograms of plastic scrap per hour by this crusher?
Meantime, we have to investigate purpose of our final plastic scrap, if it is to be feeded directly into a screw extruder as recycle plastic, crusher with bigger screen diameter is chosen to save crushing time and increase production capacity, and if it is to be feeded to a pulverizer for further milling into powder, a crusher of smaller diameter is chosen, because better pre-crushing will make pulverizer easy for milling.
On the other hand, the category of waste plastic will determine the blade type indise the crusher.
So, chosing the right crusher will benefit in production efficiency,power saving and good performance of machine.
Application of Crusher
1,Normal waste plastic pipe and hose
2,Thin plastic sheet and panel
3,PET bottle
4,Bulk plastic scrap
5,Plastic film and woven bags
Plastic Crusher Specification Table
| Model | PC-300 | PC-400 | PC-500 | PC-600 | PC-800 | PC-1000 |
| Crusher room(mm) | Φ220×300 | Φ246×400 | Φ246×500 | Φ280×600 | Φ410×800 | Φ500×1000 |
| Rotary blade | 9 | 12 | 15 | 18 | 12 | 15 |
| Fixed blade | 2 | 2 | 4 | 4 | 4 | 4 |
| Screen DIA.(mm) | Φ10 | Φ10 | Φ10 | Φ10 | Φ12 | Φ14 |
| Capacity(kg/h) | 100-200 | 200-300 | 300-400 | 400-500 | 500-600 | 600-800 |
| Dimension(m) | 1.1×0.8×1.2 | 1.3×0.9×1.7 | 1.4×1.0×1.65 | 1.45×1.25×1.72 | 1.5×1.4×1.8 | 1.7×1.6×2.2 |
| Power(KW) | 5.5 | 7.5 | 11 | 15 | 22 | 30 |
| Weight(kg) | 480 | 660 | 870 | 1010 | 1700 | 2300 |
| Material of blade | 9CrSi | 9CrSi | 9CrSi | 9CrSi | 9CrSi | 9CrSi |
Plastic Crusher Details
After-Sales Services
Technical documents
All the symbols on the equipments should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
2. Arrangement for inspection, installation and testing work
a. After all machines are delivered to customer's factory; Buyer is responsible for all preparation work, e.g. electricity supply, water supply, labors and cranes, etc.
b. ACEMIEN will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer's factory.
c. The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 per day for each engineer.
d. Engineer will give free training lessons to labors in buyer's factory.
e. If buyer doesn't request installation and commissioning by Seller's engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by buyer.
3. Quantity and quality guarantee
a. Quantity/Quality Discrepancy to destination port during transportation:
In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination. Insurance company and shipping company will be responsible for any discrepancy of the goods caused by shipping company and other transportation organization and/or post office.
b. Guarantee period and after-sales services: 12 months since date of bill of lading
During this guarantee period, ACEMIEN will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, ACEMIEN will provide the buyer spare parts at cost price.
c. Long-term service:
ACEMIEN will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
